CREABETON AG
6221 Rickenbach LU
[email protected]
Tel: 0848 400 401
GLN: 7649992269007
EORI: CH12345671234XXX (ex.)

Digital Product Passport

Basic information

Item 123504
GTIN 07649992269984
TARIC 85171200 10 VXXX (ex.)
Type J0011
Product name Paving stones

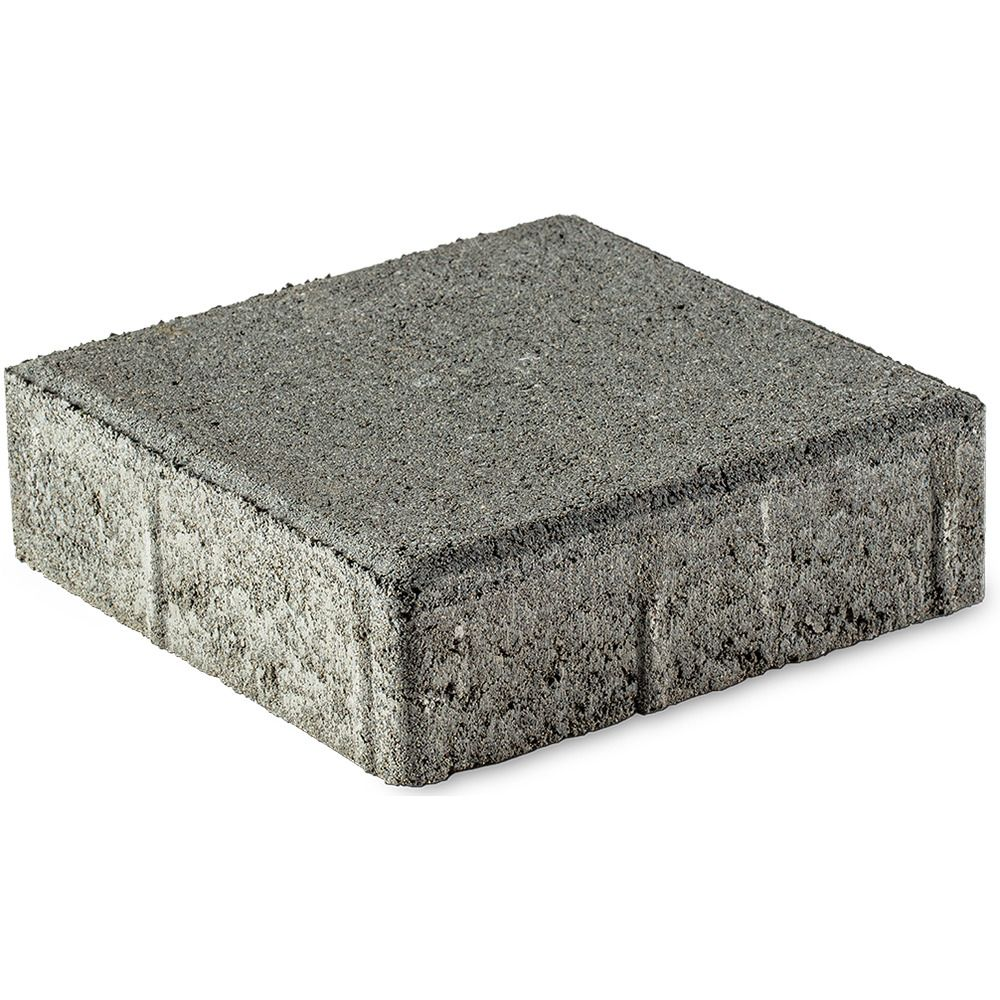

Product description CLASSIC® paving stones gray, smooth, chamfered with cams, H 6 cm
Production plant 11 - Lyss BE - GLN: 7649992269014, 21 - Rickenbach LU - GLN: 7649992269021, 73 - Flawil SG - GLN: 7649992269038
Color Gray color

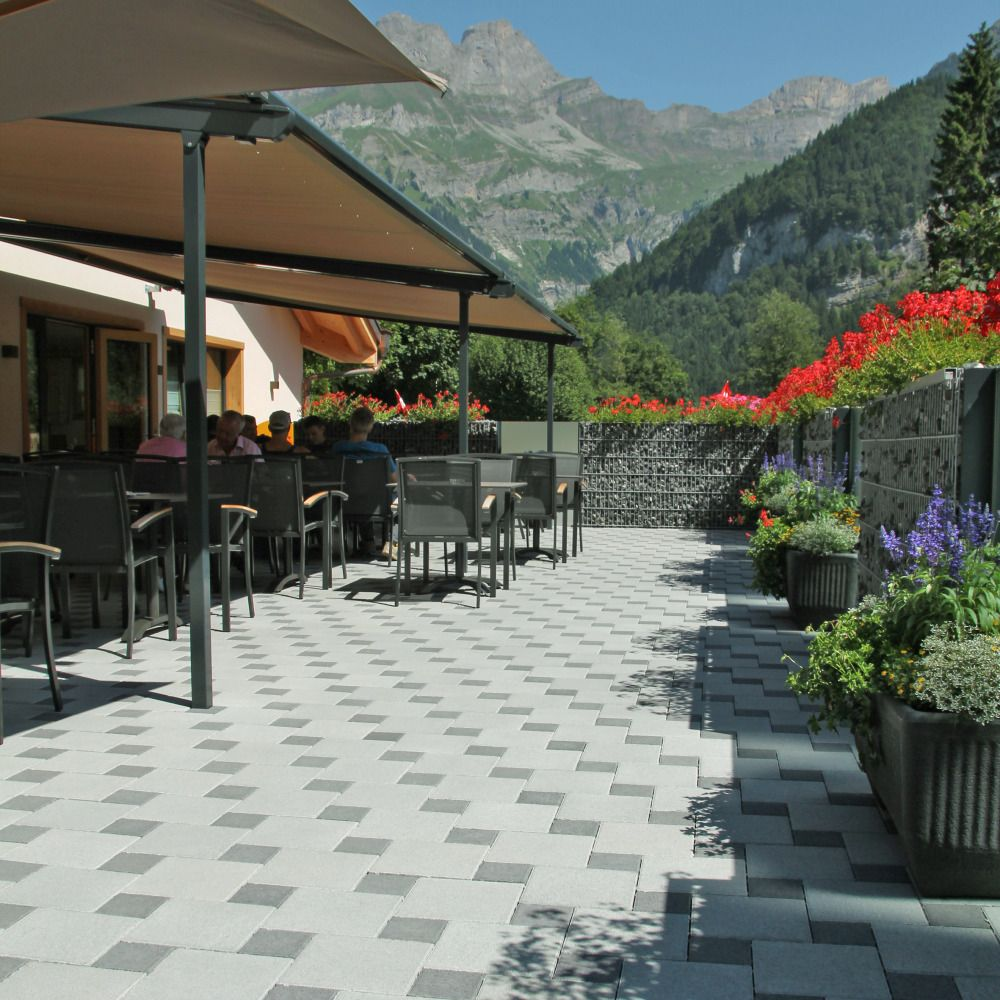

Pictures

Menu

  • Product info
  • CE Mark
  • Certificates & Declarations
  • Recycling and performance
  • User manuals

Dimensions

Length L in cm 20
Width B in cm 20
Height H in cm 6
Dimensions 1:5 / 1:2
Quantity M in m^2/pal 9.6
Quantity M in pce/m^2 16.7
Weight P in kg/m^2 133

Composition

sand / aggregate quantity 82%
water quantity 6%
cement quantity 12%
Other additives Ja

Files

BIM model (.ifc)
J0011 123504 73 PZ 01 01
CAD drawing (.ndw)
J0011 123504 21 PZ 01 01
PDF drawing
J0011 123504 21 PZ 01 01
CAD drawing (.dwg)
J0011 123504 73 PZ 01 01
Year CE marking was introduced 2024
Identifier of the certifying body NB 1254
Performance declaration reference code QS ZURICH, SWITZERLAND
CE Certificat (ex.)
ce-emc co-licence ex

Recycling

We are also happy to accept dismantled Creabeton products at our sales outlets

Recyclinginstrutionen

Ecological performance criteria

Declaration of performance

LE-73-001-800-05
Laying examples J0010 CLASSIC® paving stones
j0010-produktinfo
J0000 Laying instructions for interlocking and paving stones
j0000-versetzhinweise
Technical guidelines for concrete block coverings
wegleitung-betonsteinbelaege
Technical guidelines for installation patterns
wegleitung-verlegemuster
Maintenance and cleaning information sheet
merkblatt-unterhalt-und-reinigung
